Ball Clay Manufacturer & Exporter
Your Reliable Source for High-Quality Ball Clay
Delivering Superior Products to Meet Your Industrial Needs
Our range of BALL CLAY is high on demand in the market. It is a highly plastic variety of clay of kaolin group. The high plasticity in ball clay is attributed to its particles being very ?ne grained. The pyrometric cone equivalent of ball clay hardly exceeds 33. Over 85% of the particle sizes present in ball clay are less in diameter. Client can be eased with the availability of Ball Clay at the most nominal prices. Our clients can avail it in diverse customizations as per their specific needs.
Ball Clay Packing
Grade - W1
Specifications
| End Use | Ceramics |
| Grade | W1 I P1 I P2 |
| Packing | Loose / 40 Kg / Jumbo Bags |
| Plant | Nal Gaon (50 Kms From Bikaner, Rajasthan) |
| Mesh | Lumps |
Ball clay is a highly plastic variety of kaolin having high binding power, tensile strength and shrinkage, Ball clays or plastic clays are fine grained, highly plastic sedimentary clays, which fire to a light or near white colour. They are used mainly in the manufacture of ceramic white ware and are valued for their key properties of plasticity, unfired strength and their light fired colour. Ball clays exhibit highly variable compositions and consist of a mixture, primarily of kaolinite, mica and quartz, with each contributing different properties to the clay.
Hind Exports is a reputable name in the industry, known for its commitment to delivering premium quality Ball Clay minerals. With decades of experience and expertise, we have established ourselves as a reliable manufacturer and exporter, catering to diverse industrial needs worldwide. Our dedication to quality and customer satisfaction has earned us the trust of clients across the globe.
Ball Clay is generally used for Ceramics.
Ball clay is used as wall and floor tiles in the construction industry by mixing with talc, feldspar, kaolin, and quartz/silica, as it increases the plasticity and improves bonding properties.
We produce Ball Clay in forms of :

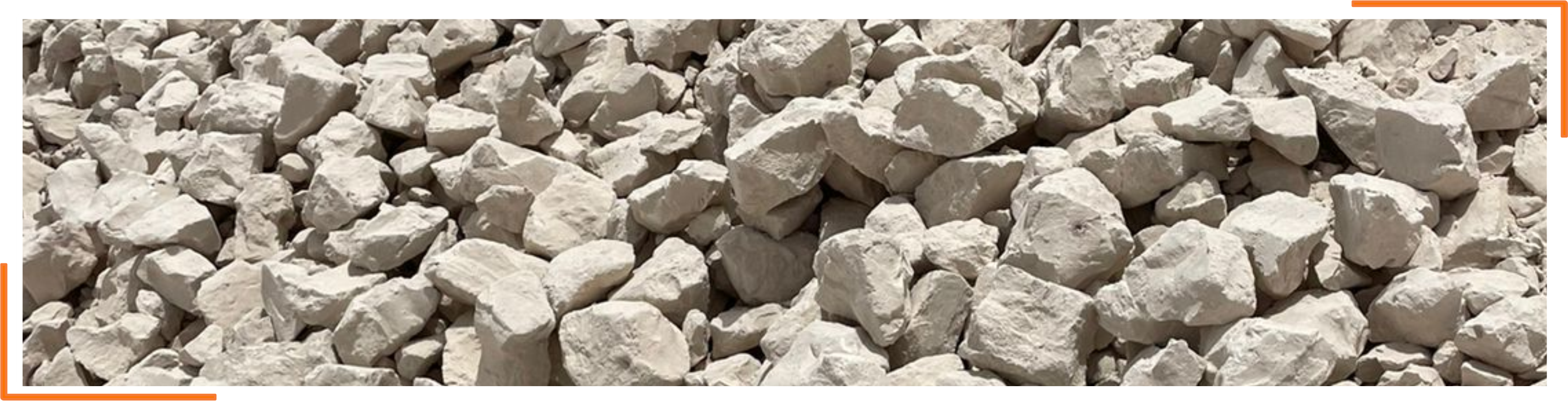

1. Lumps form : 1 inches to 15 inches
Ball Clay
| GRADE | GRADE | GRADE | |
|---|---|---|---|
| W1 | P1 | P2 | |
| SiO2 % | 49.5 | 52.230 | 55.125 |
| Al2O3 % Fe2O3 % | 34.6 | 31.265 | 27.675 |
| 0.45 | 00.885 | 00.830 | |
| TiO2 % | 0.41 | 00.765 | 01.795 |
| CaO % | 0.52 | 00.110 | 00.225 |
| MgO % | 0.25 | 11.580 | 11.235 |
| Na20 % | 0.55 | 00.495 | 00.345 |
| K20 % | 0.7 | 01.165 | 01.165 |
| Loss on Ignition % | 12.2 | - | - |
| Water Plasticity % | - | 32.360 | 32.820 |
| Water Absorption % | - | 03.045 | 04.460 |
| Fired Shrinkage % | - | 13.990 | 11.125 |
| Whiteness % | - | 52.600 | 50.500 |
| L Value % | - | 75.100 | 76.000 |
| A Value % | - | 00.600 | 02.200 |
| B Value % | - | 15.500 | 11.800 |
Ball Clay Technical Data
| Chemical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| LS1 | LS2 | HS-T | HS-B | RD2 | S1 | SN1 | WHITE CLAY | ||
| Silica | SiO2 | 51.09% | 64.38% | 52.46% | 49.51% | 55.38% | 52.13% | 47.02% | 47.34% |
| Aluminium | Al2O3 | 33.04% | 23.26% | 30.75% | 34.39% | 28.46% | 35.72% | 35.72% | 34.98% |
| Iron | Fe2O3 | 1.1% | 0.83% | 1.41% | 1.1% | 1.62% | 1% | 1% | 1.14% |
| Titanium | Tio2 | 1.12% | 1.27% | 1.05% | 1.17% | 1.80% | 1.26% | 1.26% | 1.21% |
| Calcium | CaO | 0.32% | 0.31% | 0.49% | 0.32% | 0.32% | 0.31% | 0.31% | 0.31% |
| Magnesium | MgO | 0.37% | 0.41% | 0.21% | 0.28% | 0.42% | 0.37% | 0.37% | 0.34% |
| Potassium | K2O | 1.17% | 0.92% | 1.72% | 0.81% | 0.46% | 0.69% | 0.69% | 0.93% |
| Sodium | Na2O | 0.24% | 0.23% | 0.26% | 0.44% | 0.29% | 0.24% | 0.24% | 0.56% |
| Loss On Ignition | L.O.I | 11.23% | 7.89% | 11.29% | 11.75% | 11.01% | 13.14% | 13.14% | 12.91% |
| Physical Properties | |||||||||
| L Value | 90.87% | 90.24% | 84.35% | 84.54% | 82.61% | 90.48% | 91.3% | 86.22% | |
| A Value | 1.4% | 1.12% | 1.95% | 1.24% | 2.37% | 0.52% | 0.35% | 0.8% | |
| B Value | 8.26% | 8.04% | 16.14% | 13.28% | 2.37% | 9.36% | 10.32% | 12.27% | |
| Whiteness | 78.25% | 76.82% | 64.69% | 65.72% | 15.37% | 77.33% | 79.54% | 68.43% | |
| Temprature C | 1188/1205 | 1188/1205 | 61.41% | ||||||
| Cycle Min | 45% | 45% | |||||||
| Residue(#240) | 0.19% | 1.19% | 2.48% | 0.15% | |||||
| TDS | 570 | 260 | 600 | 850 | 610 | 530 | 800 | 440 | |
| Shrikage | 7.13% | 4.92% | 11.12% | 15.13% | 9.91% | 8.71% | 11.71% | 13.07% | |
| Fired M.O.R KG/CM2 | 287.2Kg/cm2 | 237.5Kg/cm2 | 366.4kg/cm2 | 361.1kg/cm2 | 229.7kg/cm2 | 228.4Kg/cm2 | 229.3Kg/cm2 | 264.7Kg/cm2 | |
| Dry M.O.R KG/CM2 | 25.4% | 22.6% | 28.1% | 25.2% | 24.3kg/cm2 | 21.6Kg/cm2 | 22.2Kg/cm2 | 23.9Kg/cm2 | |
| Water Plasticity | 40.4% | 30.4% | 39.2% | 43.8% | 32.6% | 32% | 35.2% | 33.6% | |
| Water Absorption | 11.36% | 14.66% | 1.94% | 1.82% | 8.34% | 11.07% | 10.23% | 3.01% | |
| Loss On Ignition | 10.75% | 11.96% | |||||||
Ball Clay Manufacturer & Supplier in India
Hind Exports is Leading Ball Clay Manufacturer & Supplier in India, main city is Agartala ,Agra, Ahmedabad, Aizawl, Ajmer, Aligarh, Allahabad, Alwar, Amaravati, Ambala, Ambattur, Ambernath, Amravati, Amritsar, Aurangabad, Bangalore, Bareilly, Belgaum, Bhagalpur, Bhavnagar, Bhilai, Bhiwandi, Bhopal, Bhubaneswar, Bidhannagar, Biharsharif,Bikaner, Bilaspur, Bokaro, Chandigarh, Chennai, Chittoor, Coimbatore, Cuttack, Dahod, Davanegere, Dehradun, Delhi, Dhanbad, Dharamsala, Dindigul, Diu, Durgapur, Erode, Faridabad, Fatehpur, Gandhidham, Gandhinagar, Ghaziabad, Greater Hyderabad, Greater Mumbai, Greater Warangal, Gurgaon, Guwahati, Gwalior, Haldia, Howrah , Hubballi-Dharwad, Hyderabad, Imphal, Indore, Jabalpur, Jaipur, Jalandhar, Jammu, Jamnagar, Jamshedpur, Jhansi, Jodhpur, Junagadh, Kakinada, Kalyan-Dombivali,Kanpur, Karnal , Kavaratti, Kochi, Kohima, Kolhapur, Kolkata, Kota, Lucknow, Ludhiana, Madurai, Mehsana, Mangalore, Mangaluru, Mira-Bhayandar , Moradabad, Morbi, Mumbai, Muzaffarpur, Mysore, Nagpur, Namchi, Nasik, Navi Mumbai, NDMC, Nellore,New Delhi, New Town Kolkata, Noida, Oulgaret, Pali, Panaji, Panipat, Panvel, Pasighat, Patiala, Patna, Pimpri-Chinchwad, Port Blair, Puducherry, Pune, Raipur, Rajkot, Ranchi, Raurkela Industrial Township, Rourkela, Sagar, Salem, Satna, Secunderabad, Shaharanpur, Shillong, Siliguri, Silvassa, Solapur, Srinagar, Surat, Thane, Thanjavur, Thiruvananthapuram, Thoothukudi, Thrissur, Tiruchirapalli, Tirunelveli, Tirupur, Tumkur, Udaipur, Ujjain, Ulhasnagar, Vadodara, Vapi, Varanasi, Vasai-Virar, Vellore , Vishakhapatnam.
Used in Various Applications
Our Ball Clay minerals find application in various industries, including but not limited to:
- Ceramics
Global Reach for Ball Clay Exports
.png)
At Hind Exports, we take great pride in our global reach, top-notch quality, and dedication to customer satisfaction. Our Ball Clay exports play a pivotal role in fueling economic growth, industrial development, and fostering international trade relationships in these regions. We are dedicated to being your reliable partner in the global Ball Clay trade.
Don't hesitate to contact us today to discuss your Ball Clay export requirements. We eagerly anticipate the opportunity to serve you and contribute to your success in the international market.
